Ceiling-mounted Wi-Fi occultation sensor

EGP1,680.00

Upgrade your home with the Wenzhi WZ-M100 Motion Sensor! Detects movement accurately, automates lights, and integrates with Tuya Smart Life for total convenience.

Description

Tuya Smart Life ZigBee/WiFi Millimeter Wave Human Presence Motion Sensor – Wenzhi WZ-M100

Transform your home into a truly smart living space with the Wenzhi WZ-M100 Human Presence Motion Sensor. Designed with cutting-edge radar technology, this sensor detects human movement accurately and integrates seamlessly with your smart home ecosystem for maximum convenience and automation.

H2 – Key Features

1. Upgraded 24GHz Radar for Precise Detection

  • Detects movements with high accuracy (±10cm) using advanced FMCW variable frequency modulation.

  • Faster preprocessing and minimal latency, ensuring rapid response without false alarms.

  • Ideal for complex applications where precise detection is required, while 5.8 GHz remains perfect for standard home use.

2. Smart Light Intensity Integration

  • Measures light levels (0–2000 lux) to trigger automated smart scenes.

  • Automatically controls lights and other devices through the Tuya Smart app based on brightness changes.

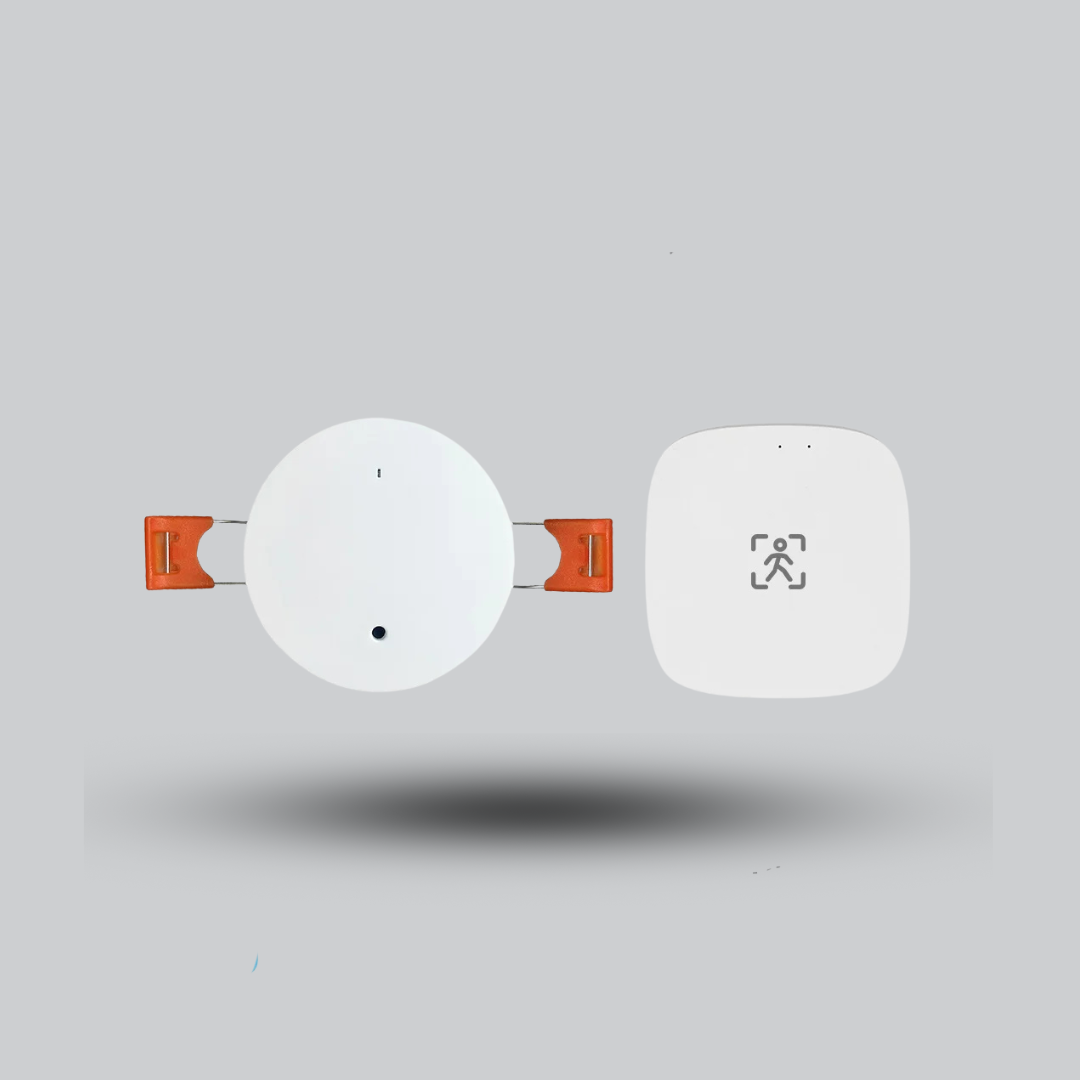

3. Two Installation Models

  • Ceiling Mount: Works as a downlight, powered directly via AC (80–240V).

  • Wall Mount: Lightweight, wireless, operates via 5V USB. Flexible placement for any room.

4. Customizable Settings for Every Need

  • Adjustable sensitivity (1–9) and detection range (0–9.5 meters).

  • Retention period: 0–1500 seconds. Response time: 0–10 seconds.

  • Reduces false alarms and ensures smooth detection for everyday use.

5. ZigBee Hub Compatibility

  • Requires Tuya ZigBee hub as a central bridge for reliable smart home control.

  • Ensures stable connectivity and wide compatibility with multiple smart devices.

– Technical Specifications

SpecificationDetails
NetworkZigBee/Wi-Fi
Radar5.8 GHz / 24 GHz
Ceiling Mount Input80–240V AC
Wall Mount Input5V USB
Operating Temperature-20°C to +70°C
5.8 GHz Wall Sensor RangeMax 9 meters (default 6m)
5.8 GHz Ceiling Sensor RangeMax 7 meters (default 5m)
24 GHz Sensor RangeMax 5 meters
Light Sensor0–2000 lux
Target Detection Confirmation0.1 seconds
Target Disappearance Delay2–1500 seconds (default 90s)
Ceiling DimensionsØ61mm x H39mm
Ceiling Hole Size53–58mm
Wall Dimensions58mm x 58mm x 11mm

– Uses & Benefits

  • Ideal for smart lighting automation based on presence and ambient light.

  • Enhances security by detecting human movement in rooms or corridors.

  • Reduces energy consumption by activating devices only when needed.

  • Works seamlessly with Tuya Smart Life for full home automation.

Ceiling-mounted Wi-Fi occultation sensorCeiling-mounted Wi-Fi occultation sensor

وظائف كشف متنوعة

1. Detecting subtle movements: It can detect minor movements such as head tilting, hand waving, hand raising, body movement, using a phone, turning a book, and more.

2. Presence detection: It can detect the presence of a stationary human body.

3. Motion detection: It can detect walking, jogging, sprinting, turning, jumping, and other movements.

4. Distance measurement: The target distance measurement function allows for accurate filtering of targets outside the designated area.

Ceiling-mounted Wi-Fi occultation sensorCeiling-mounted Wi-Fi occultation sensorCeiling-mounted Wi-Fi occultation sensorCeiling-mounted Wi-Fi occultation sensor

Illuminance detection

Detectable illuminance value

Ceiling-mounted Wi-Fi occultation sensor

Detection distance setting

Ceiling-mounted Wi-Fi occultation sensor

Adjustable Parameters

Various parameters such as detection distance can be set through app.

Ceiling-mounted Wi-Fi occultation sensorCeiling-mounted Wi-Fi occultation sensorCeiling-mounted Wi-Fi occultation sensor

Instructions

The debugging files of WiFi and ZigBee existers are consistent. Breathing human body detector detects the micro motion information of various objects in the surrounding environment through microwave to determine whether there is a person at present. That is, if the conditions for moving objects are met, it can be determined as manned. For example: family pets. In terms of algorithm, algorithm has been used to suppress the fluttering curtains and air conditioner vents, but it is not ruled out that this may interfere with the presence. In this case, actual testing is required.The top mounting is easier to detect “standing still, squatting still”. For sitting still, the detection effect is slightly inferior to the wall mounting; However, more accurate detection can also be achieved by setting greater sensitivity and longer delay time than wall mounting. Wall mounting can detect sitting still, standing still and squatting still.

Installation location and area

*existing detection radius: 1 ~ 3M
*fretting detection radius: 5 ~ 7M

Ceiling-mounted Wi-Fi occultation sensor
