AMT 305 Passive Ceiling Speaker – 20W / 100V
Product Manual
- AMT_305-306-308_MANUAL_20170117123410
The Equipson AMT 305 is a 2-way passive ceiling loudspeaker designed for commercial audio installations. It delivers 20W at 8Ω and supports L100V systems with selectable 20W / 15W / 7.5W power settings, featuring a 5.25-inch woofer and 1-inch tweeter for clear speech and music reproduction.
Equipson AMT 305 2-Way Passive Ceiling Speaker – 20W / 100V
A compact 2-way passive ceiling speaker designed for discreet audio integration across commercial and indoor environments. It delivers 20W at 8Ω and also supports 100V distributed audio systems with selectable power settings. A 5.25-inch woofer and 1-inch tweeter provide dedicated low- and high-frequency reproduction, while the white ABS enclosure and metal grille create a clean finish once installed.
Discreet In-Ceiling Integration

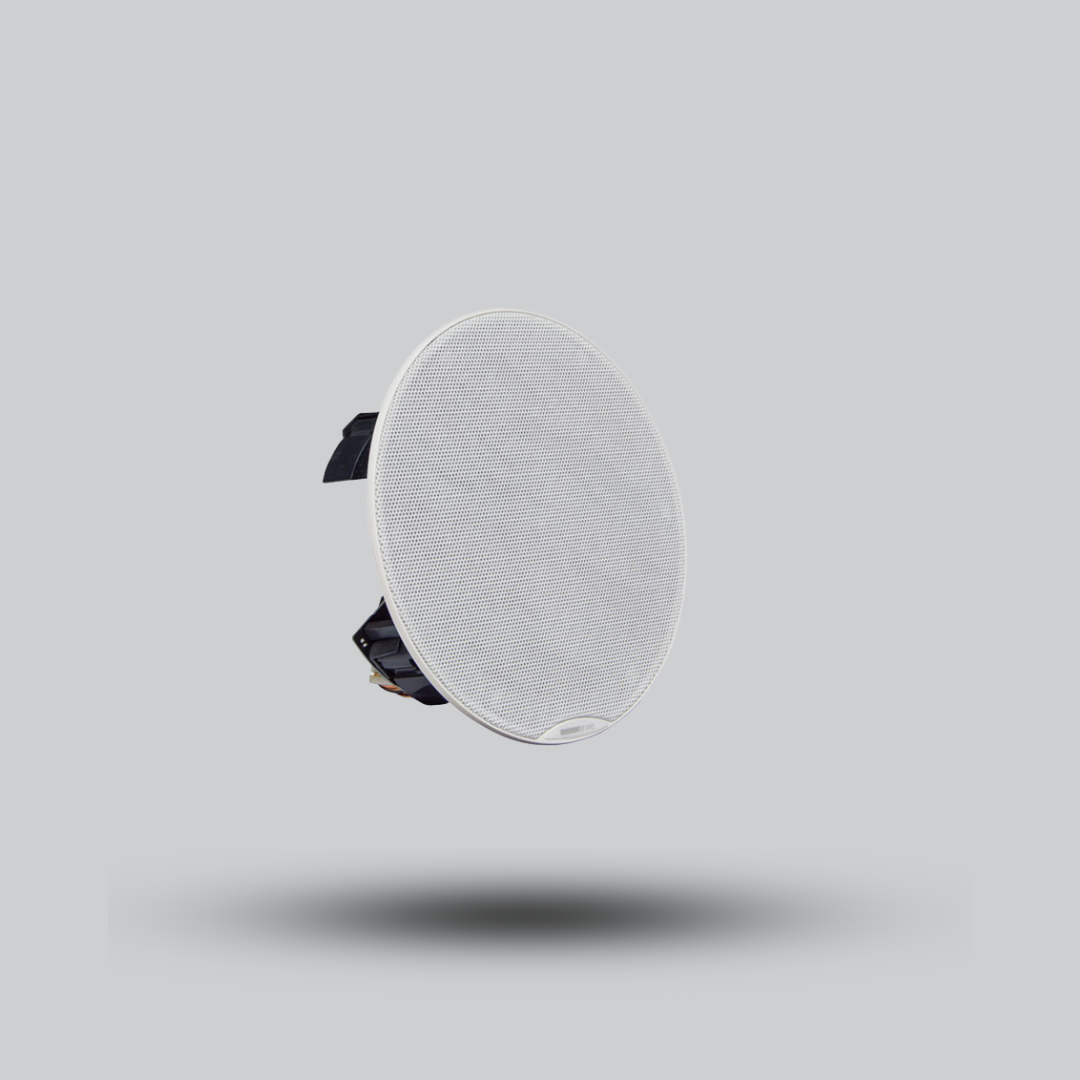

- Designed for flush installation in indoor ceilings.
- 2-way architecture separates low- and high-frequency reproduction.

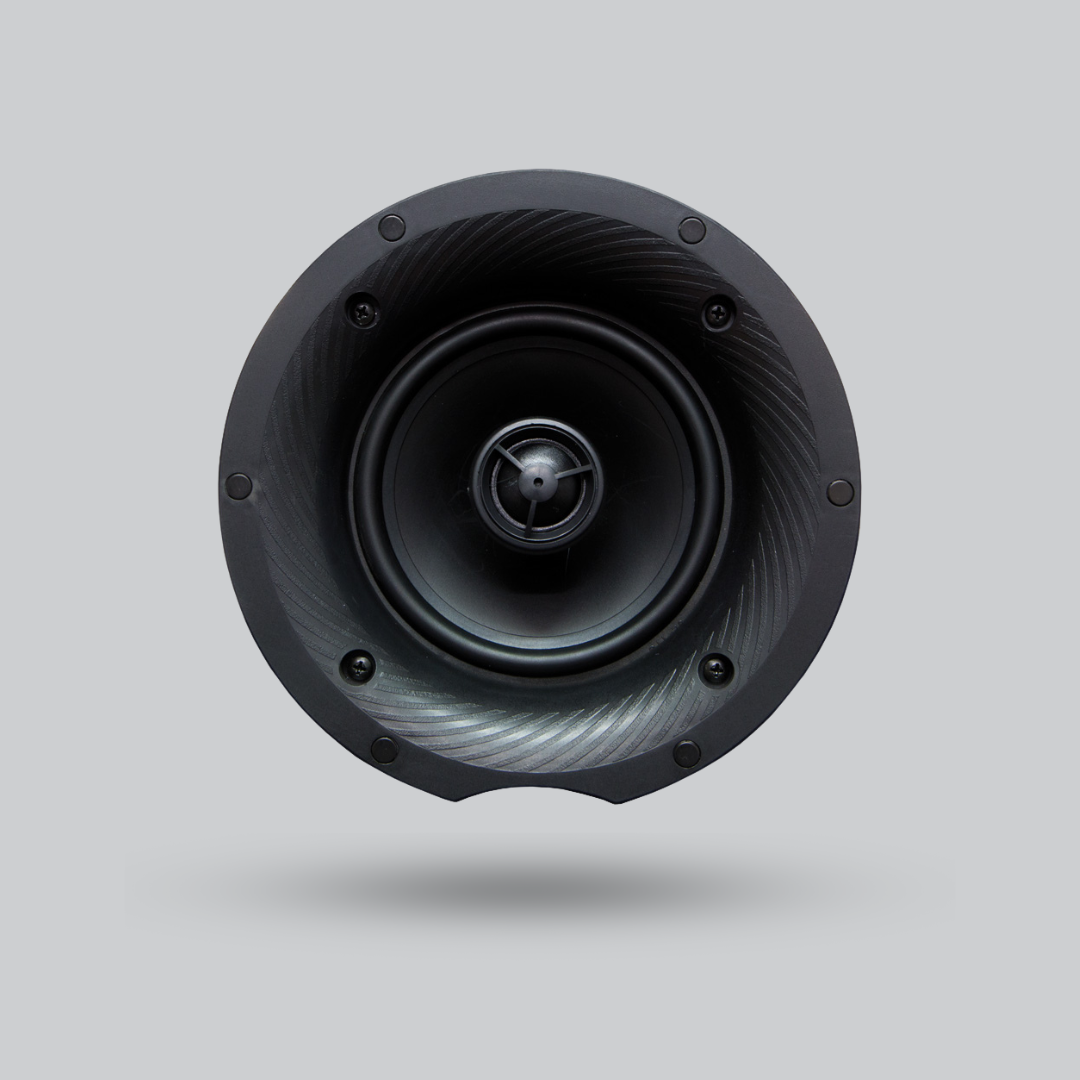

- 5.25-inch woofer paired with a dedicated 1-inch tweeter.

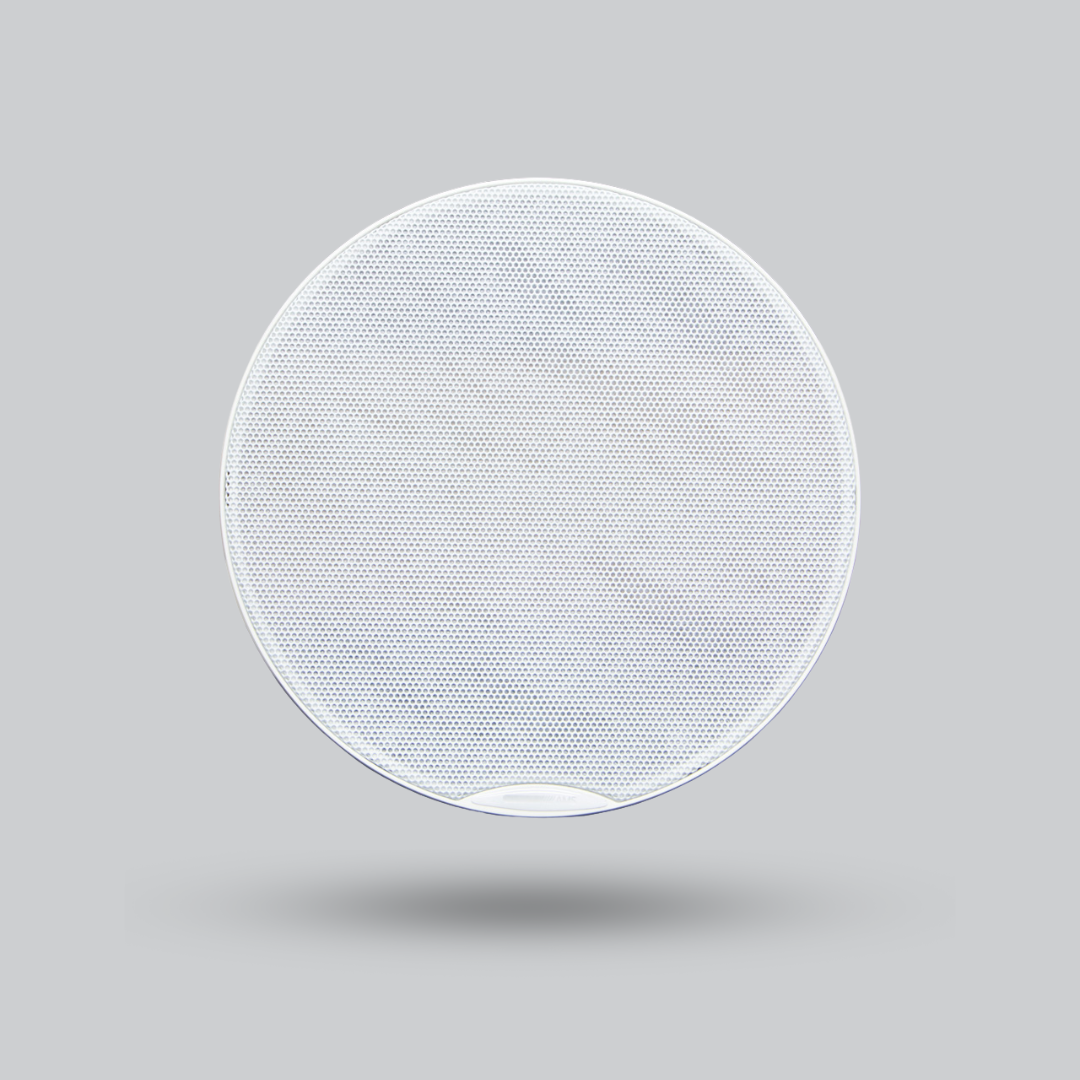

- ABS enclosure with a protective metal grille.
- White finish keeps the installation visually clean across a range of interiors.
Flexible System Integration

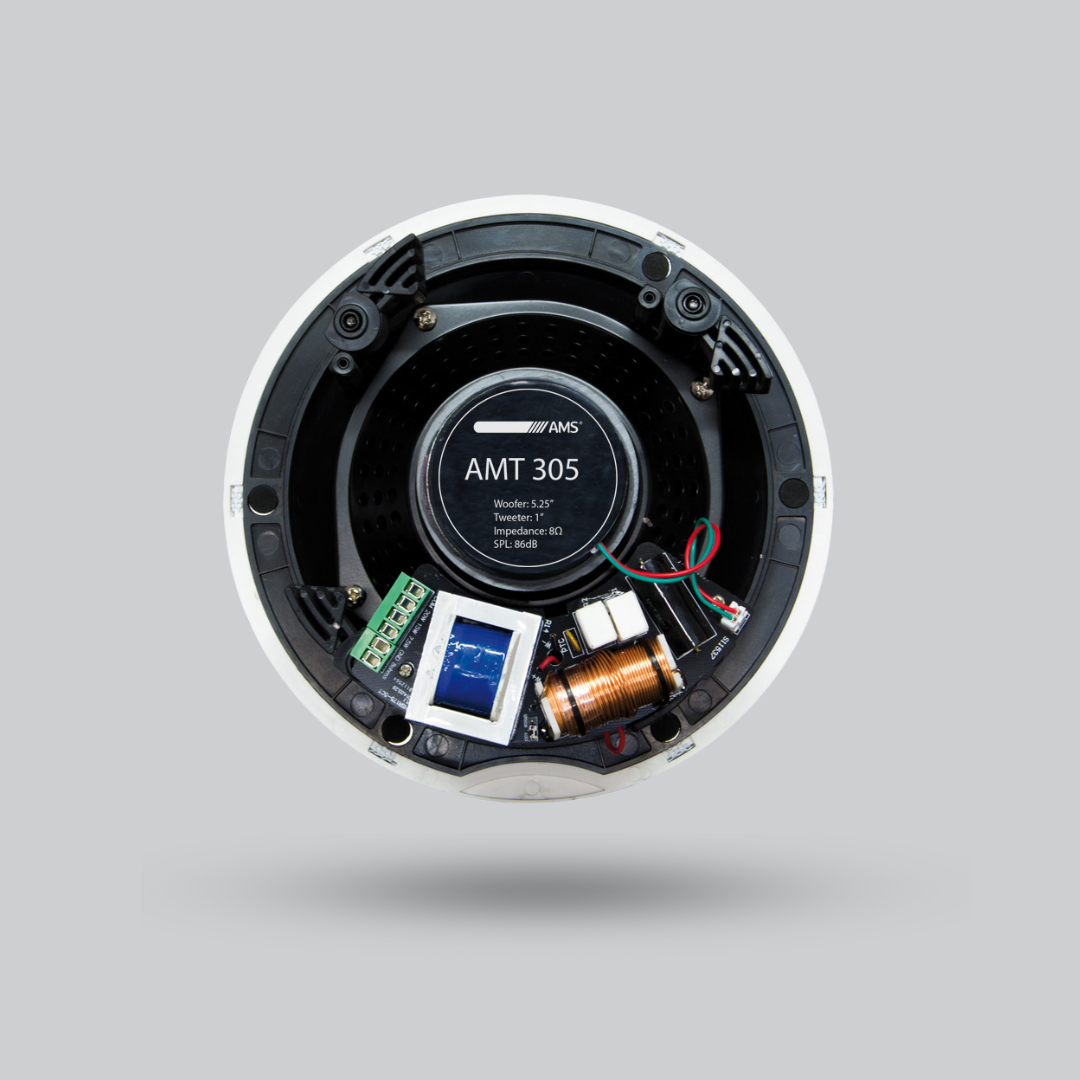

- Passive design for use with an external amplifier.
- 20W operation in an 8Ω low-impedance system.
- Compatible with 100V distributed audio installations.
- Selectable 20W, 15W and 7.5W settings for 100V operation.
- Suitable for offices, hotels, retail spaces and other commercial interiors.
Key Features
Its dual operating options make this ceiling speaker adaptable to different installation requirements. It can be used in a conventional 8Ω setup or integrated into a 100V distributed system, where selectable power settings provide greater control when multiple loudspeakers are deployed across different zones.
Balanced 2-Way Reproduction
- Frequency response from 100Hz to 20kHz.
- Dedicated drivers for low- and high-frequency reproduction.
- 5.25-inch woofer handles the lower frequency range.
- 1-inch tweeter reproduces high-frequency content.
Power Options for Different Projects
- 20W power rating in 8Ω operation.
- Selectable 20W, 15W or 7.5W settings on a 100V line.
- Flexible power selection simplifies multi-speaker system planning.
Technical Specifications
| Brand | Equipson |
| Model | AMT 305 |
| Speaker Type | 2-Way Passive Ceiling Speaker |
| Power at 8Ω | 20W |
| Operating Options | 8Ω / 100V |
| 100V Power Taps | 20 / 15 / 7.5W |
| Woofer | 5.25" |
| Tweeter | 1" |
| Frequency Response | 100Hz – 20kHz |
| Enclosure Material | ABS Plastic |
| Grille | Metal |
| Mounting Cutout | 180mm |

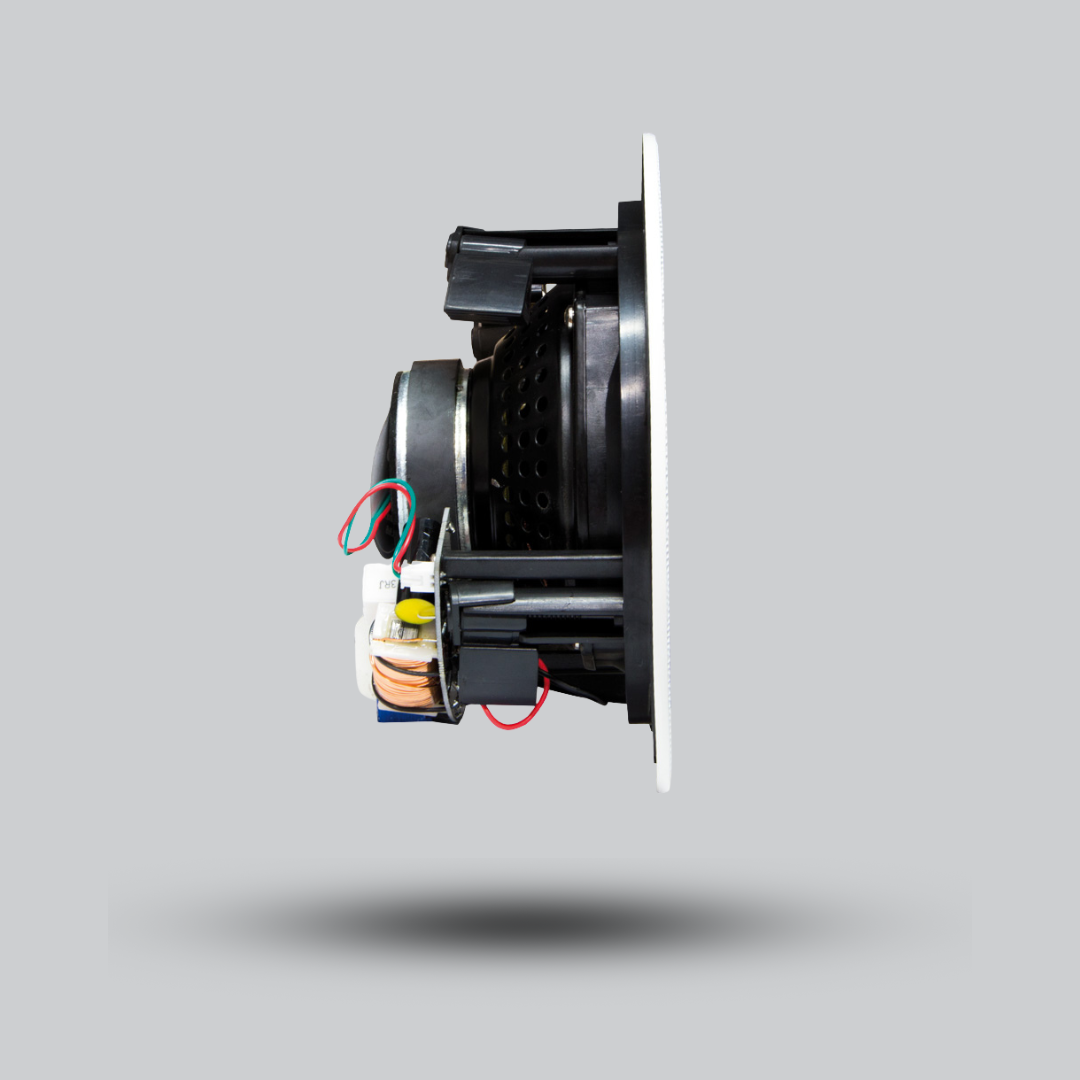

| Mounting Depth | 73mm |
| Dimensions | Ø200 × 77mm |
| Color | White |
| Product Code | 50AMT305 |
Designed for Clean, Distributed Audio
The flush-mount format makes this speaker a practical choice when the audio system needs to remain visually unobtrusive. Its 2-way driver configuration covers a broad frequency range, while 8Ω and 100V operation provides the flexibility required for individual rooms, commercial zones and larger multi-speaker installations.
| Brand |
Equipson |
|---|---|
| Color |
White |
